Varistor with High Energy MYL-25K Series
Introduce
As a top electronic component manufacturer in China, I am pleased to launch the high-energy MYL-25K series disc varistors. These varistors are designed to meet the growing demand for reliable, high-quality electronic components in various industries. There is a growing demand for reliable, high-quality electronic components for a variety of industries. This is the perfect choice for customers looking for a top-of-the-line product with exceptional features.
Main selling points
● High Performance: The MYL-25K Series Disc varistors are designed to provide superior performance, ensuring reliable operation in a variety of applications.
● Superior Quality: Our varistors undergo strict quality control measures to ensure high quality and consistent performance, meeting the highest industry standards.
● Wide range of applications: These varistors are suitable for a variety of applications including power supplies, automotive electronics, industrial equipment, etc., providing effective voltage regulation and surge protection.
● Customization possibilities: We offer customization options to meet the needs of specific customers, guaranteeing an ideal fit for their applications and improving overall system performance. Options to meet specific customer needs, guaranteeing an ideal fit for their applications and improving overall system performance.
● Having been manufacturing disk varistors for many years, we have the experience to provide first-class products that exceed customer expectations.

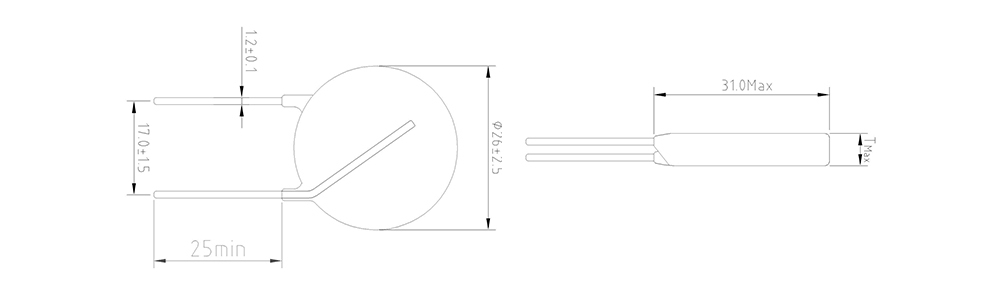

Radial Leaded

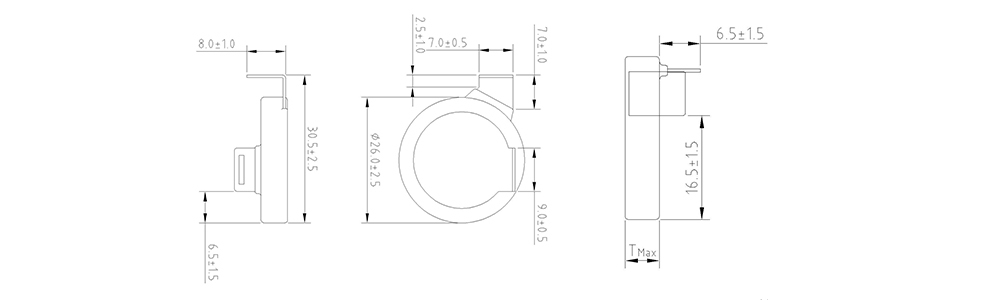

OBO

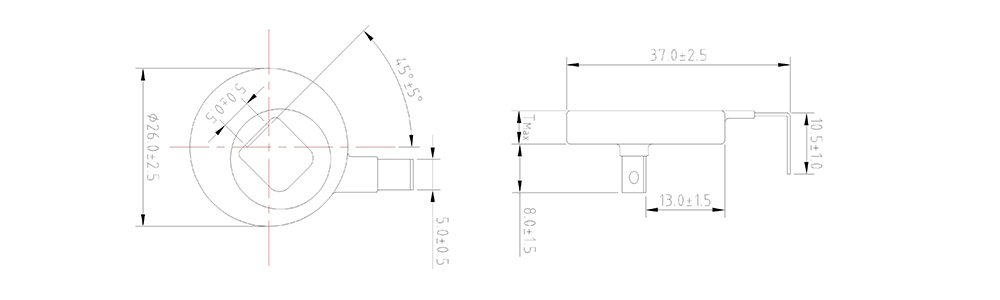

Shield Type-1

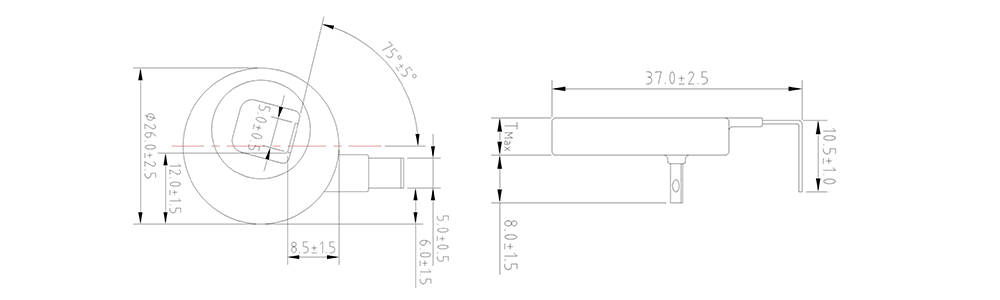

Shield Type-2
For Tmax, please refer to the data-sheet below
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage1 Vp(V)/Ip(A) |
Max. Clamping Voltage2 Vp(V)/Ip(KA) |
Max. Peak Current (8/20us) Imax×20(KA) |
Max. Peak Current (8/20us) Imax×2(KA) |
Rated Power P(W) |
Max. Energy 2ms Wmax(J) |
Max. Thickness Tmax(mm) |
|---|---|---|---|---|---|---|---|---|---|
| MYL-25K201 | 200 (180~220) |
130/170 | 350/150 | 550/5 | 5 | 15 | 1 | 125 | 5.5 |
| MYL-25K221 | 220 (198~242) |
140/180 | 375/150 | 600/5 | 5 | 15 | 1 | 135 | 5.7 |
| MYL-25K241 | 240 (216~264) |
150/200 | 395/150 | 660/5 | 5 | 15 | 1 | 145 | 5.9 |
| MYL-25K361 | 360 (324~396) |
230/300 | 595/150 | 980/5 | 5 | 15 | 1 | 190 | 6.6 |
| MYL-25K391 | 390 (351~429) |
250/320 | 650/150 | 1090/5 | 5 | 15 | 1 | 210 | 6.7 |
| MYL-25K431 | 430 (387~473) |
275/350 | 710/150 | 1190/5 | 5 | 15 | 1 | 275 | 7 |
| MYL-25K471 | 470 (423~517) |
300/385 | 775/150 | 1300/5 | 5 | 15 | 1 | 245 | 7.2 |
| MYL-25K511 | 510 (459~561) |
320/415 | 845/150 | 1400/5 | 5 | 15 | 1 | 265 | 7.4 |
| MYL-25K561 | 560 (504~616) |
350/460 | 910/150 | 1530/5 | 5 | 15 | 1 | 265 | 7.7 |
| MYL-25K621 | 620 (558~682) |
385/505 | 1025/150 | 1650/5 | 5 | 15 | 1 | 265 | 8 |
| MYL-25K681 | 680 (612~748) |
420/560 | 1120/150 | 1800/5 | 5 | 15 | 1 | 270 | 8.4 |
| MYL-25K711 | 710 (639~781) |
440/590 | 1190/150 | 1900/5 | 5 | 15 | 1 | 285 | 8.6 |
| MYL-25K781 | 780 (702~858) |
485/640 | 1290/150 | 2050/5 | 5 | 15 | 1 | 300 | 9 |
| MYL-25K821 | 820 (738~902) |
510/670 | 1355/150 | 2200/5 | 5 | 15 | 1 | 310 | 9.2 |
| MYL-25K911 | 910 (819~1001) |
550/745 | 1500/150 | 2400/5 | 5 | 15 | 1 | 340 | 9.7 |
| MYL-25K102 | 1000 (900~1100) |
625/825 | 1650/150 | 2650/5 | 5 | 15 | 1 | 375 | 10.2 |
| MYL-25K112 | 1100 (990~1210) |
680/895 | 1815/150 | 2900/5 | 5 | 15 | 1 | 390 | 10.8 |
Product Details
MYL -25K series disk varistors are used to accurately regulate voltage and protect electronic circuits from surges. MYL -25K series are used to accurately regulate voltage and protect electronic circuits from surges. Due to the nonlinear voltage-current characteristics of these varistors, voltage spikes and surges can be effectively limited, thereby protecting delicate electronic components and ensuring the reliability and durability of electronic systems. Utilizing the nonlinear voltage-current characteristics of these varistors , can effectively limit voltage spikes and surges, thereby protecting delicate electronic components and ensuring the reliability and durability of electronic systems.
Our disc varistors are manufactured using modern materials and state-of-the-art manufacturing techniques to provide reliable and consistent performance. Our disc varistors are manufactured using advanced materials and state-of-the-art manufacturing techniques to provide reliable and consistent performance. Consistent performance. Due to its small form factor and durable construction, it can be used in a variety of environments, including harsh industrial environments and automotive applications.
Due to our unwavering dedication to quality and customer satisfaction, we continually strive to improve our procedures and products. From selection to thorough product testing, we maintain strict quality standards throughout the entire manufacturing process to ensure our disc varistors meet the most stringent performance and quality standards.
In summary, the MYL-25K Series Disk Varistors are the best and best examples of reliable, high performance resistor technology. Available examples of reliable, high-performance resistor technology. We are confident that our varistors will exceed your expectations and provide the precise voltage regulation and surge protection your electronic applications require because we take quality and customer satisfaction seriously.
