Varistor of Explosion Proof Series
Introduce
As a leading manufacturer in the field of electronic components and a national high-tech enterprise, we are proud to introduce our explosion-proof and surge-resistant varistors. These components are engineered to meet the growing demand for high-quality, reliable surge protection solutions in hazardous environments. With a strong focus on performance and reliability, our explosion-proof varistors are ideal for customers looking for best-in-class products that deliver exceptional performance under challenging conditions.
Main selling points
● High Performance: Our explosion-proof surge disc varistors and plug-in nonlinear resistors are engineered to provide superior surge protection and reliable operation in hazardous environments.
● Superior Quality: These components undergo strict quality control measures to ensure high quality and consistent performance, meeting the highest industry standards for explosion-proof applications.
● Hazardous Environment Suitability: Designed for use in explosive environments, these varistors provide effective surge protection and voltage regulation in hazardous environments.
● Customization options: We offer customization options to meet specific customer requirements, ensuring a perfect fit for their hazardous applications and improving overall system safety and performance.
● Expertise and experience: With our status as a national high-tech enterprise and years of experience in manufacturing explosion-proof components, we have the expertise to provide first-class products that exceed customer expectations in hazardous environments.

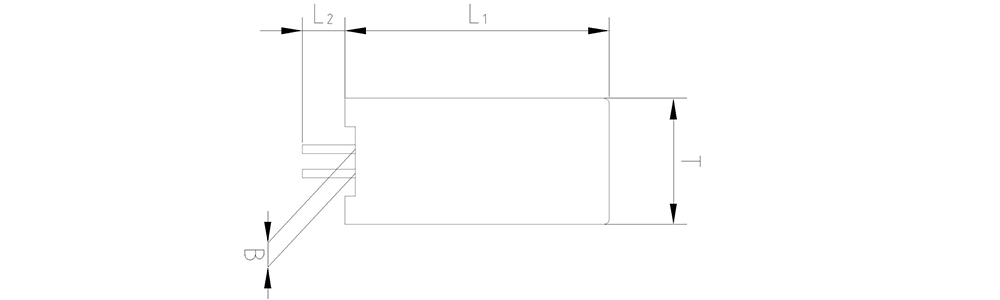

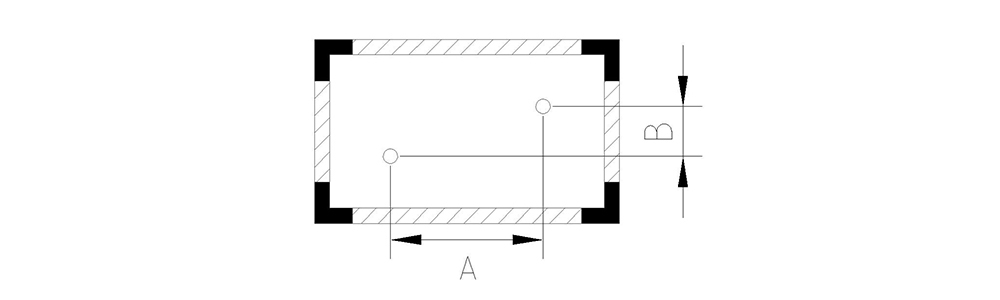

Product Dimensions
| Part No. | L±0.1(mm) | W±0.1(mm) | H±0.1(mm) | F±0.5(mm) | A±1.0(mm) | d±0.1(mm) |
|---|---|---|---|---|---|---|
| MYN12-201KM~821KM (10KAC130M~10KAC510M) |
15.5 | 11.5 | 14.1 | 4 | 7.5 | 0.8 |
| MYN15-201KM~821KM (14KAC130M~14KAC510M) |
20 | 12 | 25 | 4 | 7.5 | 0.8 |
| MYN23-201KM~821KM (20KAC130M~20KAC510M) |
26 | 14.5 | 30.5 | 4 | 10 | 1 |
Note: For Size “B”, please refer to the product dimension of Radial Leaded Product, e.g. for size B of MYN15-621KM, please refer to the size B of MYN15-621K.
Ratings and Characteristics
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000 us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN12-201KM (10KAC130M) |
200 (180~220) |
130/170 | 340/25 | 3500 | 2500 | 0.4 | 35 | 25 | 430 |
| MYN15-201KM (14KAC130M) |
200 (180~221) |
130/170 | 340/50 | 6000 | 5000 | 0.6 | 70 | 50 | 770 |
| MYN23-201KM (20KAC130M) |
200 (180~222) |
130/170 | 340/100 | 10000 | 7000 | 1 | 140 | 100 | 1700 |
| MYN12-221KM (10KAC140M) |
220 (198~242) |
140/180 | 360/25 | 3500 | 2500 | 0.4 | 39 | 27.5 | 410 |
| MYN15-221KM (14KAC140M) |
220 (198~243) |
140/180 | 360/50 | 6000 | 5000 | 0.6 | 78 | 55 | 740 |
| MYN23-221KM (20KAC140M) |
220 (198~244) |
140/180 | 360/100 | 10000 | 7000 | 1 | 155 | 110 | 1600 |
| MYN12-241KM (10KAC150M) |
240 (216~264) |
150/200 | 395/25 | 3500 | 2500 | 0.4 | 42 | 30 | 380 |
| MYN15-241KM (14KAC150M) |
240 (216~265) |
150/200 | 395/50 | 6000 | 5000 | 0.6 | 84 | 60 | 700 |
| MYN23-241KM (20KAC150M) |
240 (216~266) |
395/100 | 395/100 | 10000 | 7000 | 1 | 168 | 120 | 1500 |
| MYN12-271KM (10KAC175M) |
270 (247~303) |
175/225 | 455/25 | 3500 | 2500 | 0.4 | 49 | 35 | 350 |
| MYN15-271KM (14KAC175M) |
270 (247~304) |
175/225 | 455/50 | 6000 | 5000 | 0.6 | 99 | 70 | 640 |
| MYN23-271KM (20KAC175M) |
270 (247~305) |
175/225 | 455/100 | 10000 | 7000 | 1 | 190 | 135 | 1300 |
| MYN12-331KM (10KAC210M) |
330 (297~363) |
210/270 | 545/25 | 3500 | 2500 | 0.4 | 58 | 42 | 300 |
| MYN15-331KM (14KAC210M) |
330 (297~364) |
210/270 | 545/50 | 6000 | 5000 | 0.6 | 115 | 80 | 580 |
| MYN23-331KM (20KAC210M) |
330 (297~365) |
210/270 | 545/100 | 10000 | 7000 | 1 | 228 | 160 | 1100 |
| MYN12-361KM (10KAC230M) |
360 (324~396) |
230/300 | 595/25 | 3500 | 2500 | 0.4 | 65 | 45 | 300 |
| MYN15-361KM (14KAC230M) |
360 (324~397) |
230/300 | 595/50 | 6000 | 5000 | 0.6 | 130 | 90 | 540 |
| MYN23-361KM (20KAC230M) |
360 (324~398) |
230/300 | 595/100 | 10000 | 7000 | 1 | 255 | 180 | 1100 |
| MYN12-391KM (10KAC250M) |
390 (351~429) |
250/320 | 650/25 | 3500 | 2500 | 0.4 | 70 | 50 | 300 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000 us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN15-391KM (14KAC250M) |
390 (351~430) |
250/320 | 650/50 | 6000 | 5000 | 0.6 | 140 | 100 | 500 |
| MYN23-391KM (20KAC250M) |
390 (351~431) |
250/320 | 650/100 | 10000 | 7000 | 1 | 275 | 195 | 1100 |
| MYN12-431KM (10KAC275M) |
430 (387~473) |
275/350 | 710/25 | 3500 | 2500 | 0.4 | 80 | 55 | 270 |
| MYN15-431KM (14KAC275M) |
430 (387~474) |
275/350 | 710/50 | 6000 | 5000 | 0.6 | 155 | 110 | 450 |
| MYN23-431KM (20KAC275M) |
430 (387~475) |
275/350 | 710/100 | 10000 | 7000 | 1 | 303 | 215 | 1000 |
| MYN12-471KM (10KAC300M) |
470 (423~517) |
300/385 | 775/25 | 3500 | 2500 | 0.4 | 85 | 60 | 230 |
| MYN15-471KM (14KAC300M) |
470 (423~518) |
300/385 | 775/50 | 6000 | 5000 | 0.6 | 175 | 125 | 400 |
| MYN23-471KM (20KAC300M) |
470 (423~519) |
300/385 | 775/100 | 10000 | 7000 | 1 | 350 | 250 | 900 |
| MYN12-511KM (10KAC320M) |
510 (459~561) |
320/410 | 845/25 | 3500 | 2500 | 0.4 | 92 | 67 | 210 |
| MYN15-511KM (14KAC320M) |
510 (459~562) |
320/410 | 845/50 | 6000 | 5000 | 0.6 | 190 | 136 | 350 |
| MYN23-511KM (20KAC320M) |
510 (459~563) |
320/410 | 845/100 | 10000 | 7000 | 1 | 382 | 273 | 800 |
| MYN12-561KM (10KAC350M) |
560 (504~616) |
350/460 | 910/25 | 3500 | 2500 | 0.4 | 92 | 67 | 200 |
| MYN15-561KM (14KAC350M) |
560 (504~617) |
350/460 | 910/50 | 6000 | 5000 | 0.6 | 190 | 136 | 340 |
| MYN23-561KM (20KAC350M) |
560 (504~618) |
350/460 | 910/100 | 10000 | 7000 | 1 | 382 | 273 | 700 |
| MYN12-621KM (10KAC385M) |
620 (558~682) |
385/505 | 1025/25 | 3500 | 2500 | 0.4 | 92 | 67 | 190 |
| MYN15-621KM (14KAC385M)(14KAC385M) |
620 (558~683) |
385/505 | 1025/50 | 6000 | 5000 | 0.6 | 190 | 136 | 330 |
| MYN23-621KM (20KAC385M) |
620 (558~684) |
385/505 | 1025/100 | 10000 | 7000 | 1 | 382 | 273 | 700 |
| MYN12-681KM (10KAC420M) |
680 (612~748) |
420/560 | 1120/25 | 3500 | 2500 | 0.4 | 92 | 67 | 170 |
| MYN15-681KM (14KAC420M) |
680 (612~749) |
420/560 | 1120/50 | 6000 | 5000 | 0.6 | 190 | 136 | 320 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000 us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN23-681KM 20KAC420M) |
680 (612~750) |
420/560 | 1120/100 | 10000 | 7000 | 1 | 382 | 273 | 650 |
| MYN12-751KM (10KAC460M) |
750 (675~825) |
460/615 | 1240/25 | 3500 | 2500 | 0.4 | 100 | 70 | 160 |
| MYN15-751KM (14KAC460M) |
750 (675~826) |
460/615 | 1240/50 | 6000 | 5000 | 0.6 | 210 | 150 | 310 |
| MYN23-751KM (20KAC460M) |
750 (675~827) |
460/615 | 1240/100 | 10000 | 7000 | 1 | 420 | 300 | 600 |
| MYN12-781KM (10KAC485M) |
780 (702~858) |
485/640 | 1290/25 | 3500 | 2500 | 0.4 | 105 | 75 | 150 |
| MYN15-781KM (14KAC485M) |
780 (702~859) |
485/640 | 1290/50 | 6000 | 5000 | 0.6 | 220 | 160 | 300 |
| MYN23-781KM (20KAC485M) |
780 (702~860) |
485/640 | 1290/100 | 10000 | 7000 | 1 | 440 | 312 | 560 |
| MYN12-821KM (10KAC510M) |
820 (738~902) |
510/670 | 1355/25 | 3500 | 2500 | 0.4 | 110 | 80 | 140 |
| MYN15-821KM (14KAC510M) |
820 (738~903) |
510/670 | 1355/50 | 6000 | 5000 | 0.6 | 235 | 165 | 280 |
| MYN23-821KM (20KAC510M) |
820 (738~904) |
510/670 | 1355/100 | 10000 | 7000 | 1 | 460 | 325 | 530 |
