Varistor of Radial Leaded-07K
Introduce
As a leading manufacturer in the field of electronic components and a national high-tech enterprise, we are pleased to launch our Radial Lead-07K Varistor. These varistors are engineered to meet the growing demand for high quality, reliable surge protection solutions across industries. With a strong focus on performance and reliability, our Radial Leaded 07K Varistors are ideal for customers looking for a best-in-class product that provides superior surge protection and voltage regulation.
Main selling points
● High Performance: Radial Leaded 07K Varistors are engineered to provide superior surge protection and reliable operation in a variety of applications.
● Superior Quality: Our varistors undergo strict quality control measures to ensure high quality and consistent performance, meeting the highest industry standards for surge protection.
● Wide range of applications: These varistors are suitable for a wide range of applications, providing effective surge suppression and voltage regulation in various electronic circuits.
● Customization options: We offer customization options to meet specific customer requirements, ensuring a perfect fit for their application and improving overall system performance.
● Expertise and experience: With our status as a national high-tech enterprise and many years of varistor manufacturing experience, we have the expertise to deliver best-in-class products that exceed customer expectations.

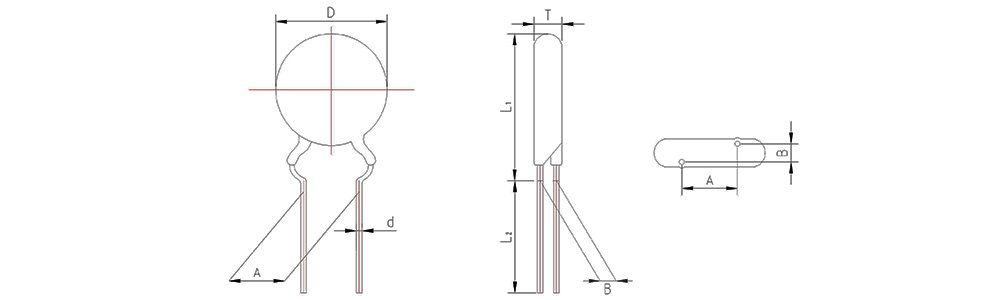

Crimp Lead
Straight Lead
| Part No. | Rated Diameter of Varistor Disk ±20%(mm) |
Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN9-180K (07KAC11) |
7 | 9 | 3.5 | 13 | 25 | 5 | 1.2 | 0.6 |
| MYN9-220K (07KAC14) |
7 | 9 | 3.6 | 13 | 25 | 5 | 1.2 | 0.6 |
| MYN9-270K (07KAC17) |
7 | 9 | 3.7 | 13 | 25 | 5 | 1.3 | 0.6 |
| MYN9-330K (07KAC20) |
7 | 9 | 3.8 | 13 | 25 | 5 | 1.4 | 0.6 |
| MYN9-390K (07KAC25) |
7 | 9 | 4 | 13 | 25 | 5 | 1.5 | 0.6 |
| MYN9-470K (07KAC30) |
7 | 9 | 4.2 | 13 | 25 | 5 | 1.6 | 0.6 |
| MYN9-560K (07KAC35) |
7 | 9 | 4.4 | 13 | 25 | 5 | 1.8 | 0.6 |
| MYN9-680K (07KAC40) |
7 | 9 | 4.7 | 13 | 25 | 5 | 2 | 0.6 |
| MYN9-820K (07KAC50) |
7 | 9 | 3.7 | 13 | 25 | 5 | 1.3 | 0.6 |
| MYN9-101K (07KAC60) |
7 | 9 | 3.8 | 13 | 25 | 5 | 1.4 | 0.6 |
| MYN9-121K (07KAC75) |
7 | 9 | 4 | 13 | 25 | 5 | 1.5 | 0.6 |
| MYN9-151K (07KAC95) |
7 | 9 | 4.3 | 13 | 25 | 5 | 1.7 | 0.6 |
| MYN9-201K (07KAC130) |
7 | 9 | 4.1 | 13 | 25 | 5 | 1.6 | 0.6 |
| MYN9-221K (07KAC140) |
7 | 9 | 4.2 | 13 | 25 | 5 | 1.7 | 0.6 |
| MYN9-241K (07KAC150) |
7 | 9 | 4.4 | 13 | 25 | 5 | 1.7 | 0.6 |
| MYN9-271K (07KAC175) |
7 | 9 | 4.5 | 13 | 25 | 5 | 1.8 | 0.6 |
| MYN9-331K (07KAC210) |
7 | 9 | 4.9 | 13 | 25 | 5 | 2.1 | 0.6 |
| MYN9-361K (07KAC230) |
7 | 9 | 5 | 13 | 25 | 5 | 2.2 | 0.6 |
| MYN9-391K (07KAC250) |
7 | 9 | 5.2 | 13 | 25 | 5 | 2.3 | 0.6 |
| Part No. | Rated Diameter of Varistor Disk ±20%(mm) |
Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN9-431K (07KAC275) |
7 | 9 | 5.4 | 13 | 25 | 5 | 2.4 | 0.6 |
| MYN9-471K (07KAC300) |
7 | 9 | 5.6 | 13 | 25 | 5 | 2.6 | 0.6 |
| MYN9-511K (07KAC320) |
7 | 9 | 5.9 | 13 | 25 | 5 | 2.7 | 0.6 |
| MYN9-561K (07KAC350) |
7 | 9 | 6.2 | 13 | 25 | 5 | 2.9 | 0.6 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000 us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN9-180K (07KAC11) |
18 (16~20) |
11/14 | 36/2.5 | 500 | 250 | 0.02 | 1.1 | 0.9 | 3800 |
| MYN9-220K (07KAC14) |
22 (20~24) |
14/18 | 43/2.5 | 500 | 250 | 0.02 | 1.3 | 1.1 | 3600 |
| MYN9-270K (07KAC17 |
27 (24~30) |
17/22 | 53/2.5 | 500 | 250 | 0.02 | 1.6 | 1.3 | 3400 |
| MYN9-330K (07KAC20) |
33 (30-36) |
20/26 | 65/2.5 | 500 | 250 | 0.02 | 2 | 1.6 | 2900 |
| MYN9-390K (07KAC25 |
39 (35~43) |
25/31 | 77/2.5 | 500 | 250 | 0.02 | 2.4 | 1.9 | 1600 |
| MYN9-470K (07KAC30 |
47 (42~52) |
30/38 | 93/2.5 | 500 | 250 | 0.02 | 2.8 | 2.3 | 1550 |
| MYN9-560K (07KAC35) |
56 (50~62) |
35/45 | 110/2.5 | 500 | 250 | 0.02 | 3.4 | 2.7 | 1500 |
| MYN9-680K (07KAC40) |
68 (61~75) |
40/56 | 135/2.5 | 500 | 250 | 0.02 | 4.1 | 3.3 | 1200 |
| MYN9-820K (07KAC50 |
82 (74~90) |
50/65 | 135/10 | 1750 | 1250 | 0.25 | 7 | 5 | 810 |
| MYN9-101K (07KAC60) |
100 (90~110) |
60/85 | 165/10 | 1750 | 1250 | 0.25 | 8.5 | 6 | 700 |
| MYN9-121K (07KAC75 |
120 (108~132) |
75/100 | 200/10 | 1750 | 1250 | 0.25 | 10 | 7 | 590 |
| MYN9-151K (07KAC95) |
150 (135~165) |
95/125 | 250/10 | 1750 | 1250 | 0.25 | 13 | 9 | 500 |
| MYN9-201K (07KAC130) |
200 (180~220) |
130/170 | 340/10 | 1750 | 1250 | 0.25 | 17.5 | 12.5 | 200 |
| MYN9-221K (07KAC140) |
220 (198~242) |
140/180 | 360/10 | 1750 | 1250 | 0.25 | 19 | 13.5 | 190 |
| MYN9-241K (07KAC150) |
240 (216~264) |
150 | 395/10 | 1750 | 1250 | 0.25 | 21 | 15 | 170 |
| MYN9-271K (07KAC175) |
270 (243~297) |
175/225 | 455/10 | 1750 | 1250 | 0.25 | 24 | 17 | 150 |
| MYN9-331K (07KAC210) |
330 (297~363) |
210/270 | 545/10 | 1750 | 1250 | 0.25 | 28 | 20 | 130 |
| MYN9-361K (07KAC230) |
360 (324~396) |
230/300 | 595/10 | 1750 | 1250 | 0.25 | 32 | 23 | 130 |
| MYN9-391K (07KAC250) |
390 (351~429) |
250/320 | 650/10 | 1750 | 1250 | 0.25 | 35 | 25 | 130 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000 us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN9-431K (07KAC275) |
430 (387~473) |
275/350 | 710/10 | 1750 | 1250 | 0.25 | 40 | 27.5 | 120 |
| MYN9-471K (07KAC300) |
470 (423~517 |
300/385 | 775/10 | 1750 | 1250 | 0.25 | 42 | 30 | 100 |
| MYN9-511K (07KAC320) |
510 (459~561) |
320/410 | 845/10 | 1750 | 1250 | 0.25 | 45 | 32 | 90 |
| MYN9-561K (07KAC350) |
560 (504~616) |
350/460 | 910/10 | 1750 | 1250 | 0.25 | 46 | 33 | 80 |
Product Details
Our Radial Leaded 07K Varistors are designed to provide precise surge protection and voltage regulation for electronic circuits. Surge suppression disc metal oxide varistors effectively limit voltage spikes and surges, protecting sensitive electronic components and ensuring the reliability and longevity of electronic systems. These varistors provide surge protection and voltage regulation, making them suitable for a wide range of applications.
Our varistors are manufactured using advanced materials and cutting-edge processes designed to provide consistent performance and reliability. The radial leaded 07K design allows for easy installation and integration into electronic circuits, providing a reliable solution for surge protection needs.
Additionally, our unwavering commitment to quality and customer satisfaction drives us to continually improve our products and processes. We adhere to strict quality standards throughout the entire manufacturing process, from careful material selection to comprehensive product testing, ensuring that our varistors meet the highest quality and performance requirements.
In summary, our radial-lead 07K varistors represent the pinnacle of high-performance, reliable surge protection solutions. With our dedication to quality and customer satisfaction, we are confident that our varistors will exceed your expectations and provide the precise surge protection and voltage regulation your electronic applications require.
