Varistor of Radial Leaded-20KS
Introduce
As a leading electronic component manufacturer, we are pleased to introduce high quality Radial Leaded 20KS Varistors. These varistors are designed to provide superior surge protection solutions and meet the highest industry standards and international requirements. With a focus on innovation and technical expertise, our varistors are ideal for customers looking for reliable, high-performance surge protection components.
Main selling points
● High Quality Manufacturing: Our varistors are manufactured using advanced processes and materials to ensure consistent performance and reliability.
● Industry recognition: As a national high-tech enterprise, we are committed to providing products that meet and exceed industry standards and certifications.
● Global Compliance: Our varistors are UL&CUL, VDE, CQC certified, RoHS and REACH compliant, and suitable for a variety of international applications.

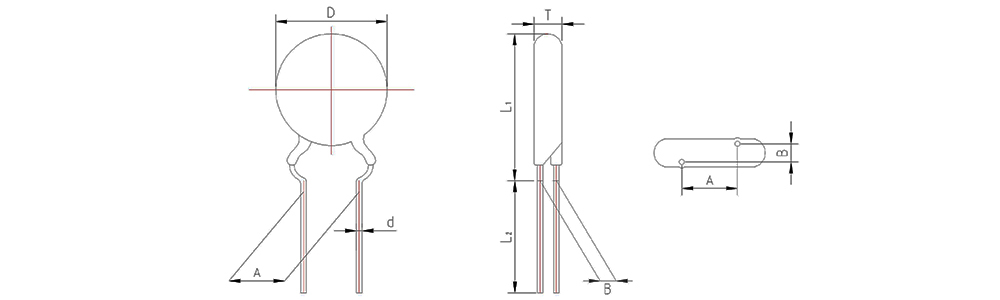

Crimp Lead

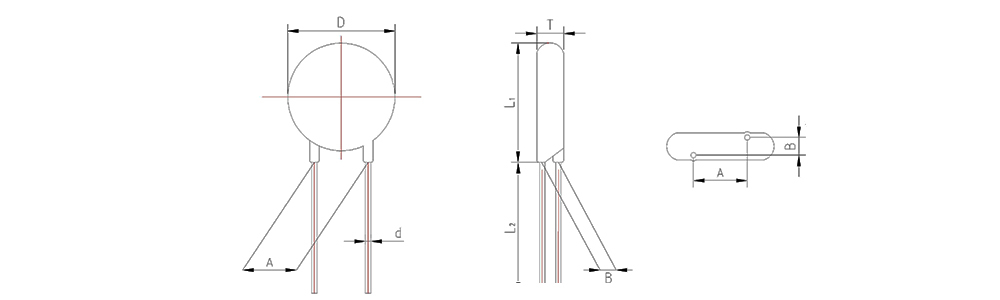

Crimp Lead
| Part No. | Rated Diameter of Varistor Disk ±20%(mm) |
Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN23-201KS (20KAC130S) |
17 | 17.5 | 4.9 | 22 | 25 | 10 | 2 | 1 |
| MYN23-221KS (20KAC140S) |
17 | 17.5 | 5 | 22 | 25 | 10 | 2.1 | 1 |
| MYN23-241KS (20KAC150S) |
17 | 17.5 | 5.2 | 22 | 25 | 10 | 2.1 | 1 |
| MYN23-271KS (20KAC175S) |
17 | 17.5 | 5.3 | 22 | 25 | 10 | 2.2 | 1 |
| MYN23-331KS (20KAC210S) |
17 | 17.5 | 5.7 | 22 | 25 | 10 | 2.5 | 1 |
| MYN23-361KS (20KAC230S) |
17 | 17.5 | 5.8 | 22 | 25 | 10 | 2.6 | 1 |
| MYN23-391KS (20KAC250S) |
17 | 17.5 | 6 | 22 | 25 | 10 | 2.7 | 1 |
| MYN23-431KS (20KAC275S) |
17 | 17.5 | 6.2 | 22 | 25 | 10 | 2.8 | 1 |
| MYN23-471KS (20KAC300S) |
17 | 17.5 | 6.4 | 22 | 25 | 10 | 3 | 1 |
| MYN23-511KS (20KAC320S) |
17 | 17.5 | 6.7 | 22 | 25 | 10 | 3.1 | 1 |
| MYN23-561KS (20KAC350S) |
17 | 17.5 | 7 | 22 | 25 | 10 | 3.3 | 1 |
| MYN23-621KS (20KAC385) |
17 | 18 | 7.3 | 24 | 25 | 10 | 3.5 | 1 |
| MYN23-681KS (20KAC420) |
17 | 18 | 7.6 | 24 | 25 | 10 | 3.7 | 1 |
| MYN23-751KS (20KAC460S) |
17 | 18 | 8 | 24 | 25 | 10 | 3.9 | 1 |
| MYN23-781KS (20KAC485S) |
17 | 18 | 8.2 | 24 | 25 | 10 | 4 | 1 |
| MYN23-821KS (20KAC510S) |
17 | 18 | 8.4 | 24 | 25 | 10 | 4.2 | 1 |
| MYN23-911KS (20KAC550S) |
17 | 18 | 8.9 | 24 | 25 | 10 | 4.5 | 1 |
| MYN23-102KS (20KAC625S) |
17 | 18 | 9.4 | 24 | 25 | 10 | 4.8 | 1 |
| MYN23-112KS (20KAC680S) |
17 | 18 | 10 | 24 | 25 | 10 | 5.2 | 1 |
| Part No. | Rated Diameter of Varistor Disk ±20%(mm) |
Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN23-182KS (20KAC1000S) |
17 | 18 | 14 | 24 | 25 | 10 | 7.6 | 1 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN23-201KS (20KAC130S) |
200 (180~220) |
130/170 | 340/100 | 10000 | 7000 | 1 | 108 | 77.5 | 1320 |
| MYN23-221KS (20KAC140S) |
220 (198~242) |
140/180 | 360/100 | 10000 | 7000 | 1 | 120 | 85 | 1240 |
| MYN23-241KS (20KAC150S) |
240 (216~264) |
150/200 | 395/100 | 10000 | 7000 | 1 | 130 | 93 | 1160 |
| MYN23-271KS (20KAC175S) |
270 (243~297) |
175/225 | 455/100 | 10000 | 7000 | 1 | 147 | 105 | 1010 |
| MYN23-331KS (20KAC210S) |
330 (297~363) |
210/270 | 545/100 | 10000 | 7000 | 1 | 177 | 124 | 850 |
| MYN23-361KS (20KAC230S) |
360 (324~396) |
230/300 | 595/100 | 10000 | 7000 | 1 | 198 | 140 | 850 |
| MYN23-391KS (20KAC250S) |
390 (351~429) |
250/320 | 650/100 | 10000 | 7000 | 1 | 213 | 151 | 850 |
| MYN23-431KS (20KAC275S) |
430 (387~473) |
275/350 | 710/100 | 10000 | 7000 | 1 | 235 | 167 | 780 |
| MYN23-471KS (20KAC300S) |
470 (423~517) |
300/385 | 775/100 | 10000 | 7000 | 1 | 271 | 194 | 700 |
| MYN23-511KS (20KAC320S) |
510 (459~561) |
320/410 | 845/100 | 10000 | 7000 | 1 | 296 | 212 | 620 |
| MYN23-561KS (20KAC350S) |
560 (504~616) |
350/460 | 910/100 | 10000 | 7000 | 1 | 296 | 212 | 540 |
| MYN23-621KS (20KAC385) |
620 (558~682) |
385/505 | 1025/100 | 10000 | 7000 | 1 | 296 | 212 | 540 |
| MYN23-681KS (20KAC420) |
680 (612~748) |
420/560 | 1120/100 | 10000 | 7000 | 1 | 296 | 212 | 500 |
| MYN23-751KS (20KAC460S) |
750 (675~825) |
460/615 | 1240/100 | 10000 | 7000 | 1 | 326 | 233 | 460 |
| MYN23-781KS (20KAC485S) |
780 (702~858) |
485/640 | 1290/100 | 10000 | 7000 | 1 | 341 | 242 | 430 |
| MYN23-821KS (20KAC510S) |
820 (738~902) |
510/670 | 1355/100 | 10000 | 7000 | 1 | 357 | 252 | 410 |
| MYN23-911KS (20KAC550S) |
910 (819~1001) |
550/745 | 1500/100 | 10000 | 7000 | 1 | 395 | 279 | 390 |
| MYN23-102KS (20KAC625S) |
1000 (900~1100) |
625/825 | 1650/100 | 10000 | 7000 | 1 | 438 | 310 | 350 |
| MYN23-112KS (20KAC680S) |
1100 (990~1210) |
680/895 | 1815/100 | 10000 | 7000 | 1 | 480 | 341 | 310 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN23-182KS (20KAC1000S) |
1800 (1620~1980) |
1000/1465 | 2970/100 | 8000 | 6500 | 1 | 791 | 558 | 190 |
Product Details
Our Radial Leaded 20KS Varistors are engineered to provide precise surge protection and voltage regulation for electronic circuits. These varistors effectively limit voltage spikes and surges, protecting sensitive electronic components and ensuring the reliability and longevity of electronic systems. Our products specialize in high energy plug-in metal oxide varistors that provide excellent surge protection capabilities, making them suitable for a wide range of applications.
Manufactured with a commitment to quality and reliability, our varistors undergo rigorous testing and quality control measures to ensure they meet the highest industry standards. The plug-in component design allows easy integration into electronic circuits, providing a reliable solution for surge protection needs.
In summary, our radial-lead 20KS varistors represent the pinnacle of high-quality surge protection solutions. Specializing in metal oxide varistors and adhering to international standards, we strive to exceed customer expectations and provide the precise surge protection and voltage regulation required for a variety of electronic applications.
