Varistor of Radial Leaded-25KS
Introduce
Disc Varistor Technology:
Our Radial Lead-25KS varistors are manufactured using advanced disk varistor technology, ensuring superior surge protection and voltage regulation capabilities. The use of disc zinc oxide varistor material enhances the durability and reliability of the product, making it ideal for a variety of applications.
High-energy plug-in design:
Radial Lead-25KS varistors are designed with high-energy plug-in zinc oxide varistors, making them capable of effectively suppressing surges and transient overvoltages. This design ensures strong surge protection, protecting sensitive electronic equipment from potential damage.
Reliable surge suppression:
With surge protection disk metal oxide varistors, our products provide reliable surge suppression, making them suitable for use in a variety of electronic equipment and systems. Its high surge current capability and low leakage current make it an important component in ensuring the safety and longevity of electronic equipment.

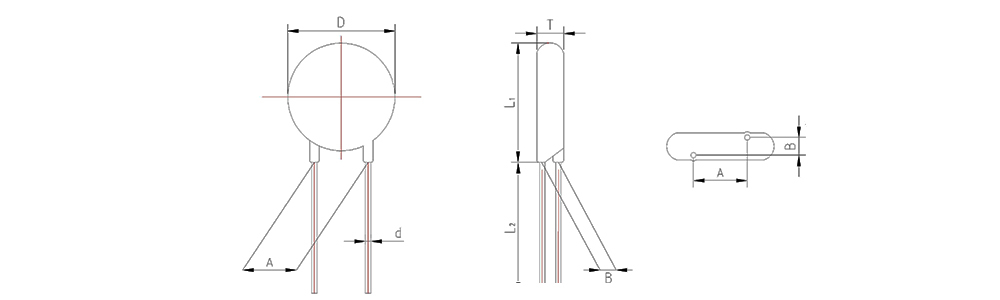

Crimp Lead
Straight Lead
| Part No. | Rated Diameter of Varistor Disk ±20%(mm) |
Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN25-201KS (25KAC130S) |
23 | 25 | 5.5 | 30 | 25 | 10 | 2.4 | 1.3 |
| MYN25-221KS (25KAC140S) |
23 | 25 | 5.6 | 30 | 25 | 10 | 2.5 | 1.3 |
| MYN25-241KS (25KAC150S) |
23 | 25 | 5.8 | 30 | 25 | 10 | 2.5 | 1.3 |
| MYN25-271KS (25KAC175S) |
23 | 25 | 5.9 | 30 | 25 | 10 | 2.6 | 1.3 |
| MYN25-331KS (25KAC210S) |
23 | 25 | 6.3 | 30 | 25 | 10 | 2.9 | 1.3 |
| MYN25-361KS (25KAC230S) |
23 | 25 | 6.4 | 30 | 25 | 10 | 3 | 1.3 |
| MYN25-391KS (25KAC250S) |
23 | 25 | 6.6 | 30 | 25 | 10 | 3.1 | 1.3 |
| MYN25-431KS (25KAC275S) |
23 | 25 | 6.8 | 30 | 25 | 10 | 3.2 | 1.3 |
| MYN25-471KS (25KAC300S) |
23 | 25 | 7 | 30 | 25 | 10 | 3.4 | 1.3 |
| MYN25-511KS (25KAC320S) |
23 | 25 | 7.3 | 30 | 25 | 10 | 3.5 | 1.3 |
| MYN25-561KS (25KAC350S) |
23 | 25 | 7.6 | 30 | 25 | 10 | 3.7 | 1.3 |
| MYN25-621KS (25KAC385) |
23 | 26 | 7.9 | 32 | 25 | 10 | 3.9 | 1.3 |
| MYN25-681KS (25KAC420) |
23 | 26 | 8.2 | 32 | 25 | 10 | 4.1 | 1.3 |
| MYN25-751KS (25KAC460S) |
23 | 26 | 8.6 | 32 | 25 | 10 | 4.3 | 1.3 |
| MYN25-781KS (25KAC485S) |
23 | 26 | 8.8 | 32 | 25 | 10 | 4.4 | 1.3 |
| MYN25-821KS (25KAC510S) |
23 | 26 | 9 | 32 | 25 | 10 | 4.6 | 1.3 |
| MYN25-911KS (25KAC550S) |
23 | 26 | 9.5 | 32 | 25 | 10 | 4.9 | 1.3 |
| MYN25-102KS (25KAC625S) |
23 | 26 | 10 | 32 | 25 | 10 | 5.2 | 1.3 |
| MYN25-112KS (25KAC680S) |
23 | 26 | 10.6 | 32 | 25 | 10 | 5.6 | 1.3 |
| Part No. | Rated Diameter of Varistor Disk ±20%(mm) |
Dmax (mm) |
Tmax (mm) |
L1max (mm) |
L2max (mm) |
A±1.0 (mm) |
B±1.0 (mm) |
d±0.1 (mm) |
|---|---|---|---|---|---|---|---|---|
| MYN25-182KS (25KAC1000S) |
23 | 26 | 14.6 | 32 | 25 | 10 | 8 | 1.3 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
|---|---|---|---|---|---|---|---|---|---|
| MYN25-201KS (25KAC130S) |
200 (180~220) |
130/170 | 340/150 | 20000 | 15000 | 1.3 | 235 | 170 | 2850 |
| MYN25-221KS (25KAC140S) |
220 (198~242) |
140/180 | 360/150 | 20000 | 15000 | 1.3 | 260 | 185 | 2680 |
| MYN25-241KS (25KAC150S) |
240 (216~264) |
150/200 | 395/150 | 20000 | 15000 | 1.3 | 280 | 200 | 2500 |
| MYN25-271KS (25KAC175S) |
270 (243~297) |
175/225 | 455/150 | 20000 | 15000 | 1.3 | 320 | 225 | 2180 |
| MYN25-331KS (25KAC210S) |
330 (297~363) |
210/270 | 545/150 | 20000 | 15000 | 1.3 | 380 | 270 | 1840 |
| MYN25-361KS (25KAC230S) |
360 (324~396) |
230/300 | 595/150 | 20000 | 15000 | 1.3 | 425 | 300 | 1840 |
| MYN25-391KS (25KAC250S) |
390 (351~429) |
250/320 | 650/150 | 20000 | 15000 | 1.3 | 460 | 325 | 1840 |
| MYN25-431KS (25KAC275S) |
430 (387~473) |
275/350 | 710/150 | 20000 | 15000 | 1.3 | 505 | 360 | 1670 |
| MYN25-471KS (25KAC300S) |
470 (423~517) |
300/385 | 775/150 | 20000 | 15000 | 1.3 | 585 | 420 | 1500 |
| MYN25-511KS (25KAC320S) |
510 (459~561) |
320/410 | 845/150 | 20000 | 15000 | 1.3 | 640 | 455 | 1340 |
| MYN25-561KS (25KAC350S) |
560 (504~616) |
350/460 | 910/150 | 20000 | 15000 | 1.3 | 640 | 455 | 1170 |
| MYN25-621KS (25KAC385) |
620 (558~682) |
385/505 | 1025/150 | 20000 | 15000 | 1.3 | 640 | 455 | 1170 |
| MYN25-681KS (25KAC420) |
680 (612~748) |
420/560 | 1120/150 | 20000 | 15000 | 1.3 | 640 | 455 | 1090 |
| MYN25-751KS (25KAC460S) |
750 (675~825) |
460/615 | 1240/150 | 20000 | 15000 | 1.3 | 700 | 500 | 1000 |
| MYN25-781KS (25KAC485S) |
780 (702~858) |
485/640 | 1290/150 | 20000 | 15000 | 1.3 | 735 | 520 | 940 |
| MYN25-821KS (25KAC510S) |
820 (738~902) |
510/670 | 1355/150 | 20000 | 15000 | 1.3 | 770 | 545 | 900 |
| MYN25-911KS (25KAC550S) |
910 (819~1001) |
550/745 | 1500/150 | 20000 | 15000 | 1.3 | 855 | 600 | 840 |
| MYN25-102KS (25KAC625S) |
1000 (900~1100) |
625/825 | 1650/150 | 20000 | 15000 | 1.3 | 945 | 670 | 750 |
| MYN25-112KS (25KAC680S) |
1100 (990~1210) |
680/895 | 1815/150 | 20000 | 15000 | 1.3 | 1040 | 740 | 670 |
| Part No. | Varistor Voltage Vc (V) |
Max. Cont. Voltage ACrms(V)/DC(V) |
Max. Clamping Voltage Vp(V)/Ip(A) |
Max. Peak Current (8/20us) Imax×1(A) |
Max. Peak Current (8/20us) Imax×2(A) |
Rated Power P(W) |
Max. Energy 10/1000us Wmax(J) |
Max. Energy 2ms Wmax(J) |
Capacitance (1KHZ) Cp(Pf) |
| MYN25-182KS (25KAC1000S) |
1800 (1620~1980) |
1000/1465 | 2970/150 | 15000 | 12000 | 1.3 | 1700 | 1200 | 420 |
Company Advantage
● High Quality Manufacturing: Our company is committed to providing top-notch varistors, adhering to strict quality control measures throughout the manufacturing process.
● Technological innovation: We continuously invest in research and development to promote technological progress and ensure that our products are always at the forefront of the industry.
● Customer-centric approach: We prioritize customer satisfaction, providing tailor-made solutions and responsive support to meet varying needs.
In summary, our Radial Lead-25KS varistor stands out as a reliable, high-performance surge protection solution, backed by our company's commitment to quality, innovation and customer satisfaction. Choose our varistors to provide unparalleled surge protection and voltage regulation for your electronic systems.
